New Four Sided Roll Pallet – Split Gate

Built around a market-leading A-frame design, the Reco Handling Four Sided Roll Pallet combines strength, security, and practicality. Three mesh sides and a two-piece split front gate feature a 50 x 50mm mesh infill structure, providing secure containment while supporting optional hinged shelving for improved organisation.

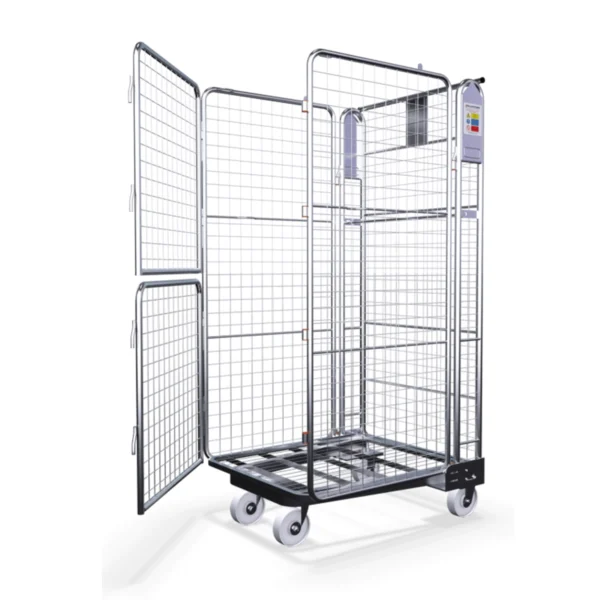

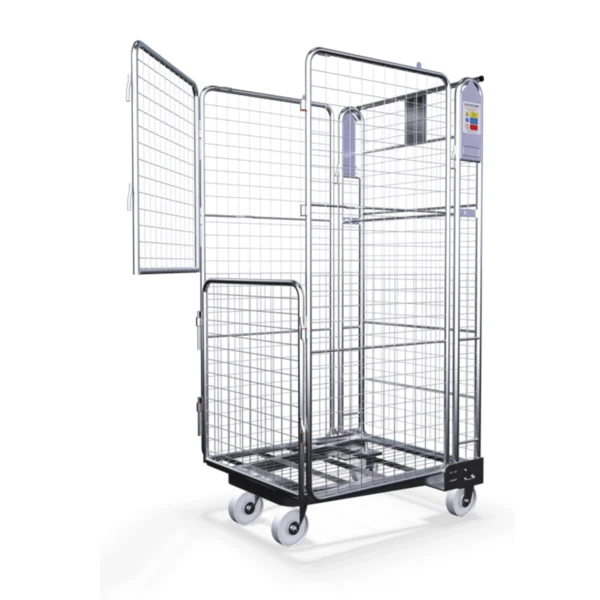

The innovative split gate design allows operators to access either the upper or lower section of the pallet independently, helping improve efficiency when loading, unloading, or picking products. Locating slots provide secure gate positioning, while integrated catches hold gates safely open to reduce the risk of accidental closure.

SKU: 19-A118
Metal Base (Fitted as Standard)
Blue Plastic Base
Purple Plastic Base
Red Plastic Base
Nylon (Fitted as Standard)
Nylon Braked
Rubber
Rubber Braked
Sandwich
Sandwich Braked

Description

New Four Sided Roll Pallet – Split Gate

The Reco Handling Four Sided A-Frame Roll Pallet is a durable and secure solution for transporting, storing, and distributing valuable goods across busy commercial and industrial environments. Manufactured from high-grade steel and finished in bright zinc plating, this heavy-duty roll pallet is designed to withstand the demands of everyday use while providing excellent product protection.

With a generous 600kg load capacity and a combination of fixed and swivel castors, the unit offers smooth manoeuvrability even when carrying heavier loads. The mesh-sided construction helps keep smaller items secure during transit, while optional shelving creates additional storage levels to maximise available space. When not required, the nestable design allows units to be stored compactly, helping reduce storage requirements and improve return logistics efficiency.

Key Features:

  • Heavy-duty A-frame steel construction
  • Bright zinc plated finish for durability and corrosion resistance
  • 600kg load capacity
  • Three mesh sides with secure two-piece split front gate
  • 50 x 50mm mesh infill design

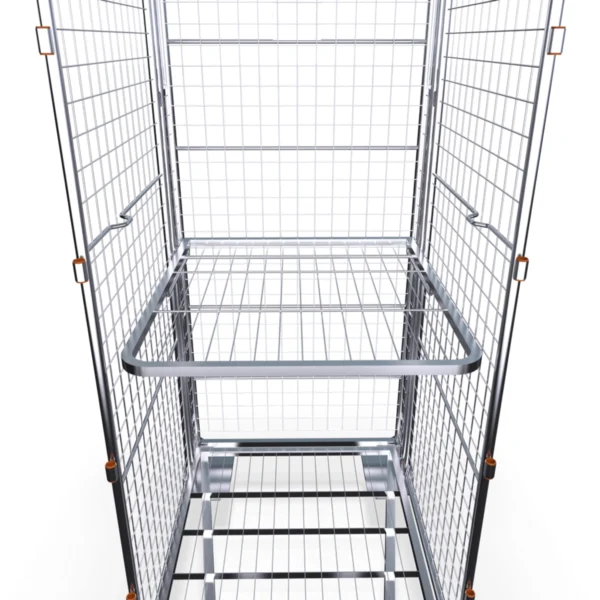

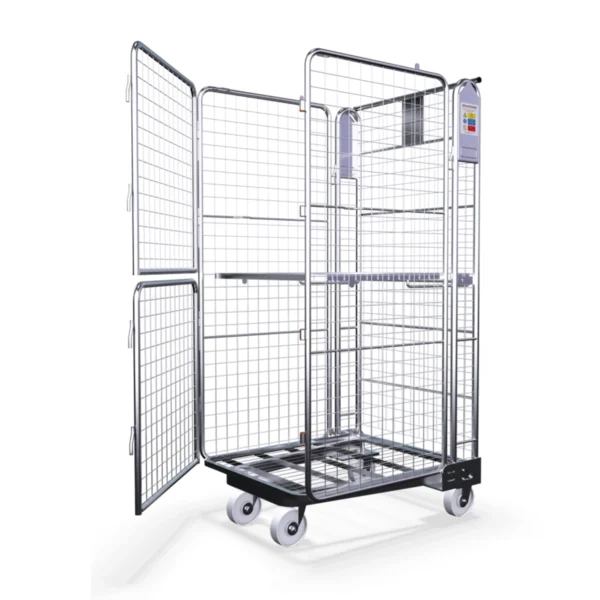

  • Optional hinged shelving for improved organisation and storage capacity
  • Gate catches hold doors securely open during loading and unloading
  • Locating slots for secure gate positioning
  • Noise-reducing plastic inserts fitted to all hinges
  • Rear kick bars help protect the cage structure from impact damage
  • Hard-wearing nylon castors fitted as standard
  • Combination of fixed and swivel castors for easy manoeuvrability

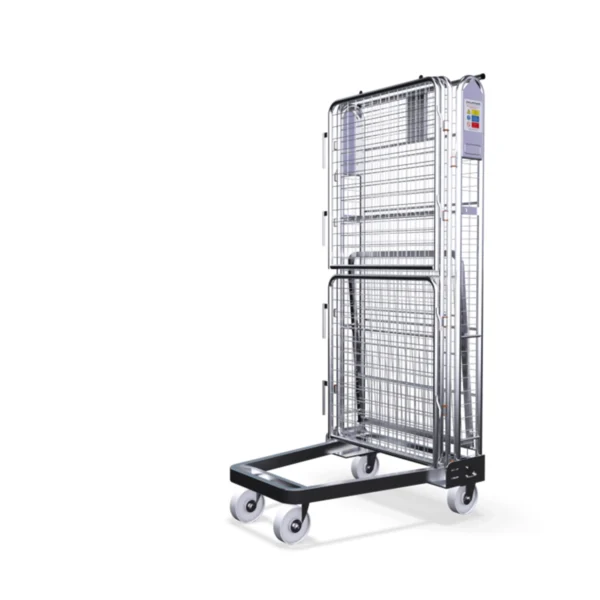

  • Nestable design for efficient storage when not in use

Ideal For Use In:

Electronics:
Provides secure transportation and storage for valuable electronic equipment and hardware. Optional shelving allows non-stackable products to be organised safely.

Pharmaceuticals:
Suitable for the secure handling and movement of medicines, healthcare supplies, and controlled products within warehouses, pharmacies, and healthcare facilities.

Retail:
Ideal for storing and transporting high-value or fragile stock, helping move goods safely from delivery vehicles to secure storage locations.

Travel & Hospitality:
Useful for handling luggage, equipment, and operational supplies in hotels, airports, and transport hubs. Optional document holders can assist with inventory and identification management.

Additional information

Finish

Bright Zinc Plate

Load Capacity

600kg

Internal Height

1425mm

Overall Height

1690mm

Base Size

735 x 850mm

Shelf Option

Hinged, Loose, Without

Document Holder

Yes, No

Base Structure

Blue Plastic Base, Metal Base (as Standard), Purple Plastic Base, Red Plastic Base

Castors

Nylon (as Standard), Rubber Braked, Braked Sandwich Swivel Castors, Fixed Rubber Castors, Fixed Sandwich Castors, Nylon Braked Swivel Castors, Nylon Fixed Castors, Nylon Swivel Castors, Swivel Rubber Castors, Swivel Sandwich Castors
